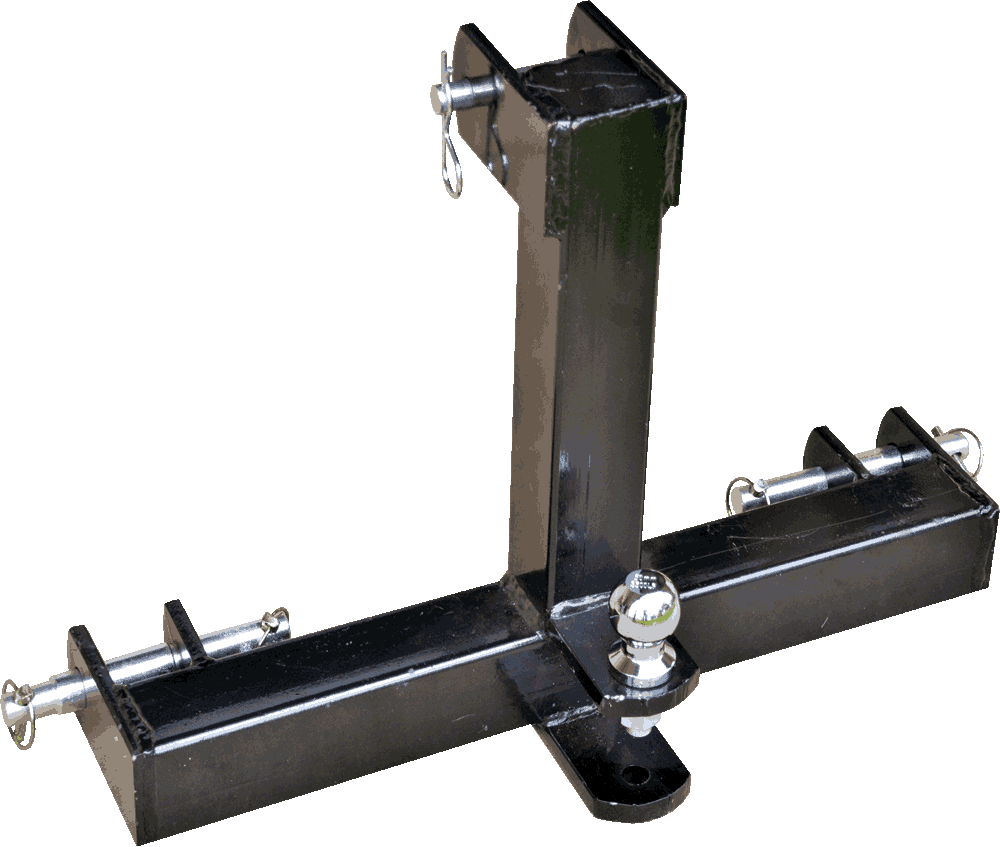

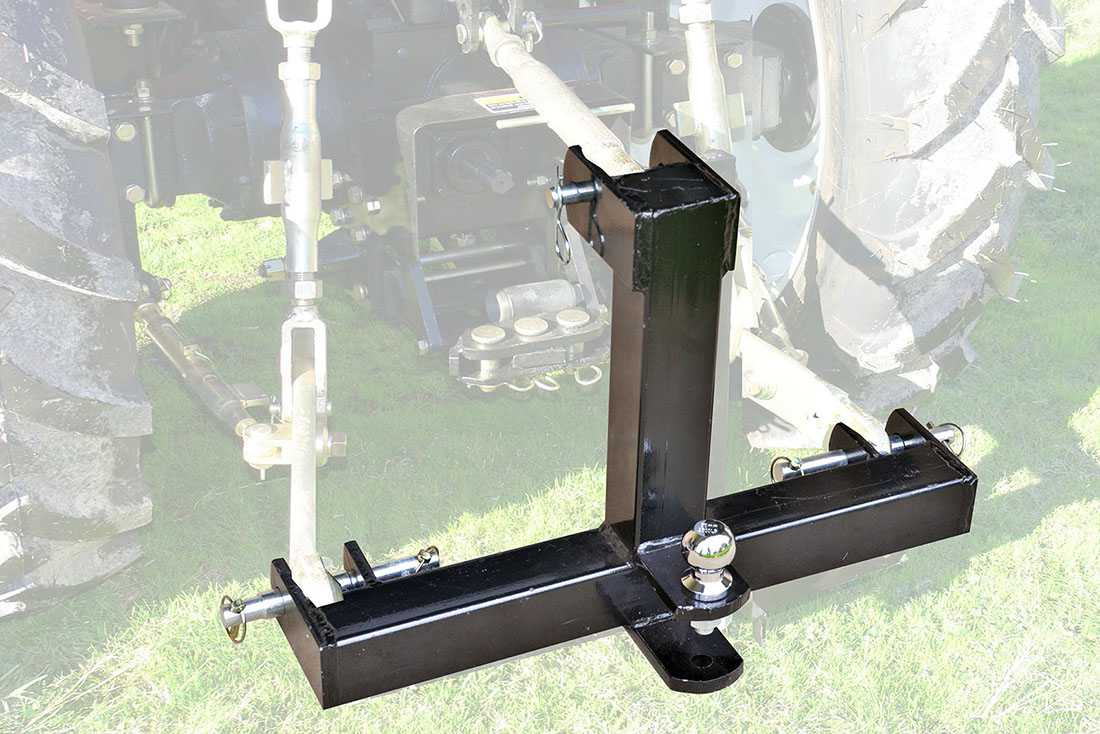

The 3 point linkage tow
bar makes lifting your
trailer easy. Ultra
strong design makes the
tow ball easily visible
from the drivers seat of
your tractor. Robust
all-steel construction
makes it easier to
connect and remove from
your tractor. Can also
be used to raise your
drawbar on your boat
trailer to drain water
from your boat after a
day fishing. Tow your
trailer around your
paddock or farm to move
water & diesel tanks,
chainsaws, toolboxes,
stock feed, small tanks,
hay, hoses,
generators... Take
advantage of your
tractor's rear end and
lift the tow bar up and
down hydraulically - no
more sore back! The
3-Point towbar has got
you covered... Suits any
trailer with a 50mm tow
hitch. Strong steel
frame, dual category
options, easy to attach,
a breeze to store.
Optionally swap the ball
for a conventional drop
pin. |
|

|
Hitch |
3 Point Linkage |
|
Hitch Spacing |
440mm - 900mm |
|
Category |
1 & 2 (Sliding
Pins) |
|
Tractor Power Required |
10 HP + |
|
Tow Ball Size |
50mm |
|
Tow Ball Shank |
25mm |
|
Tow Ball
Capacity |
3,500kg |
|
Drop Pin
Compatible |
Yes |
|
Width |
790mm |
|
Height |
470mm |
|
Depth |
280mm |
|
|
|
|
